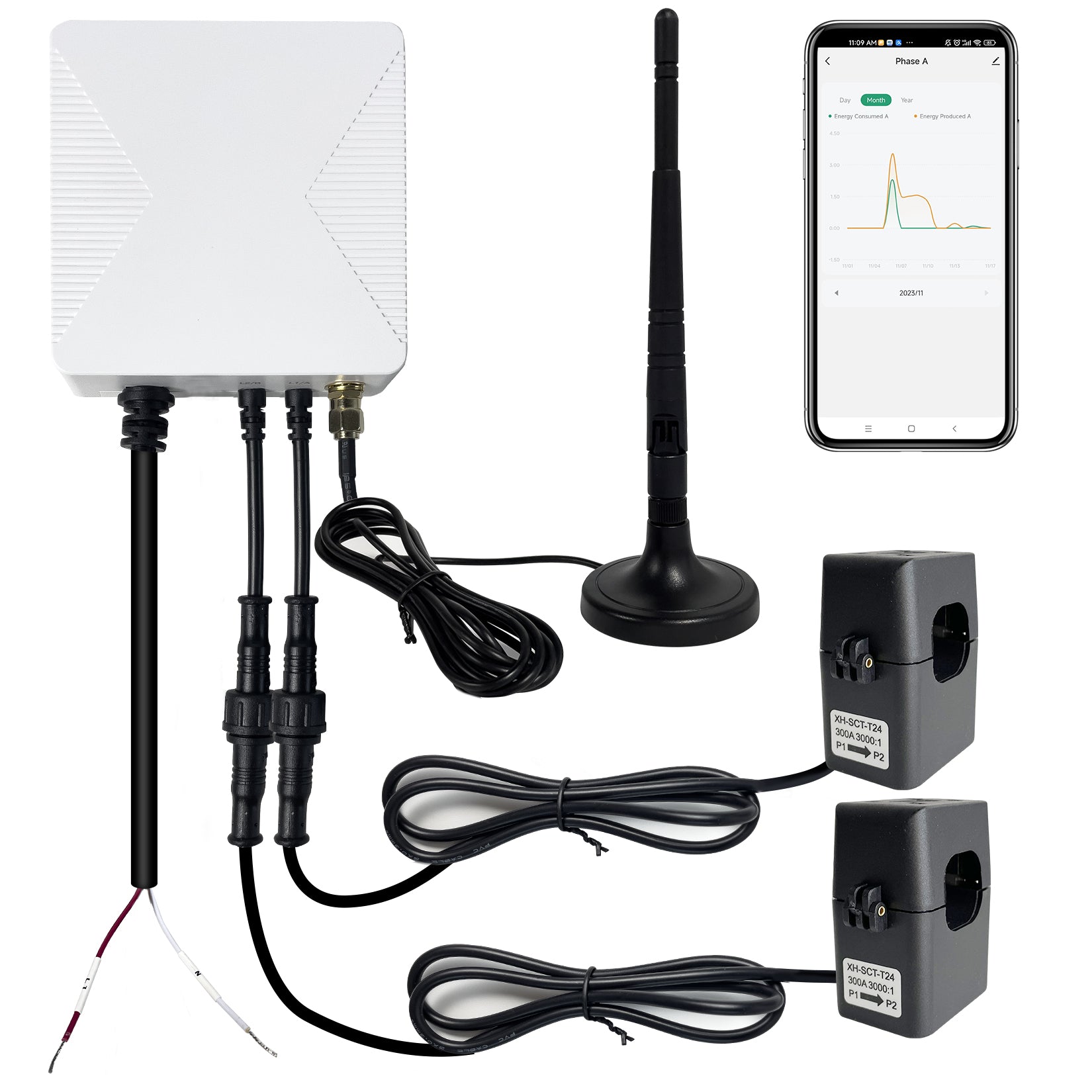

Appliance Monitoring: Equipped with two 300A sensors, this device provides precise monitoring for appliances like air conditioners, furnaces, water heaters, washers, and dryers. It seamlessly integrates with other Tuya smart devices for a fully connected home.

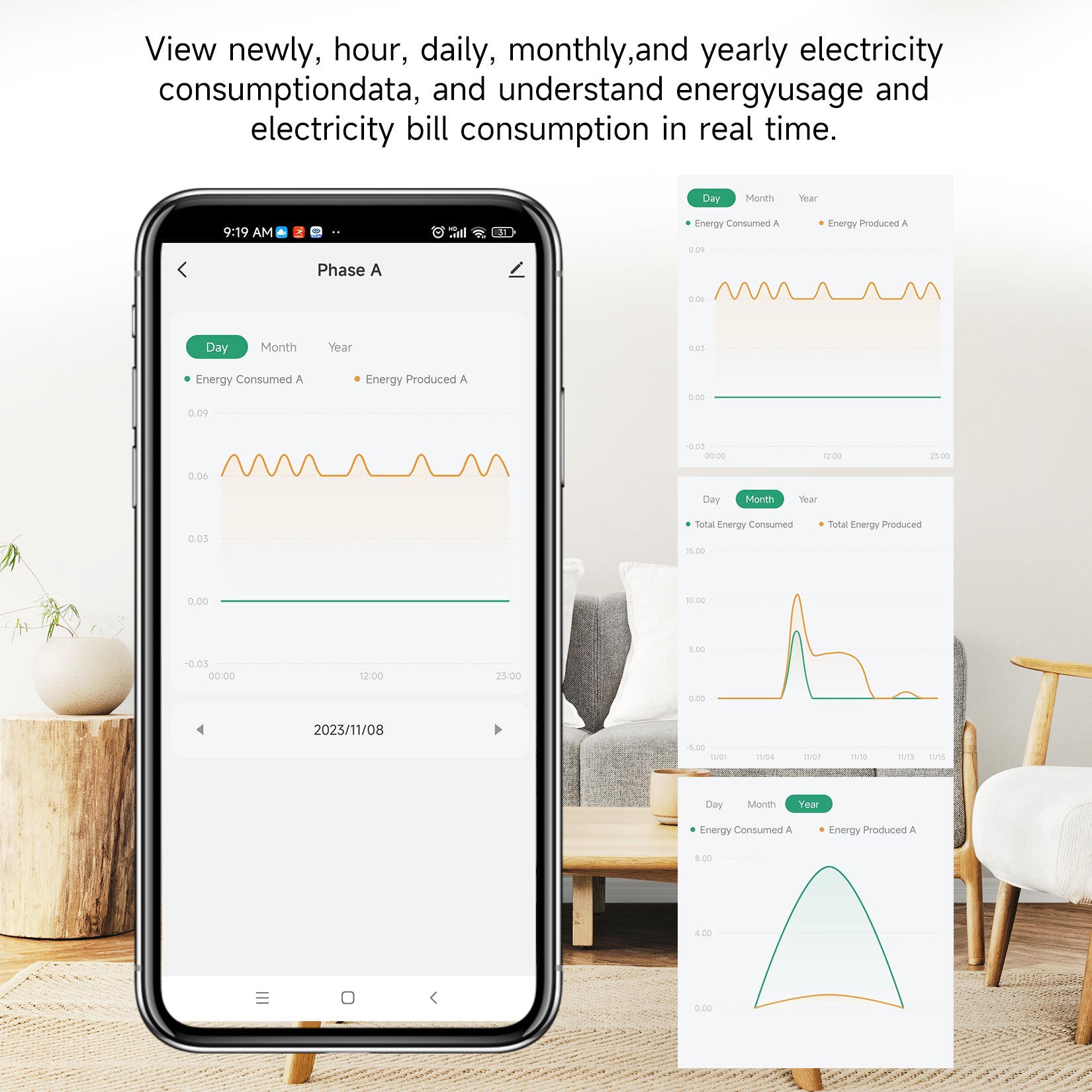

Energy Monitoring: Monitor real-time power consumption from anywhere to help prevent costly repairs and reduce energy expenses. Track key metrics such as power usage, voltage, current, and power factor, allowing you to manage and optimize your home's energy consumption with ease.

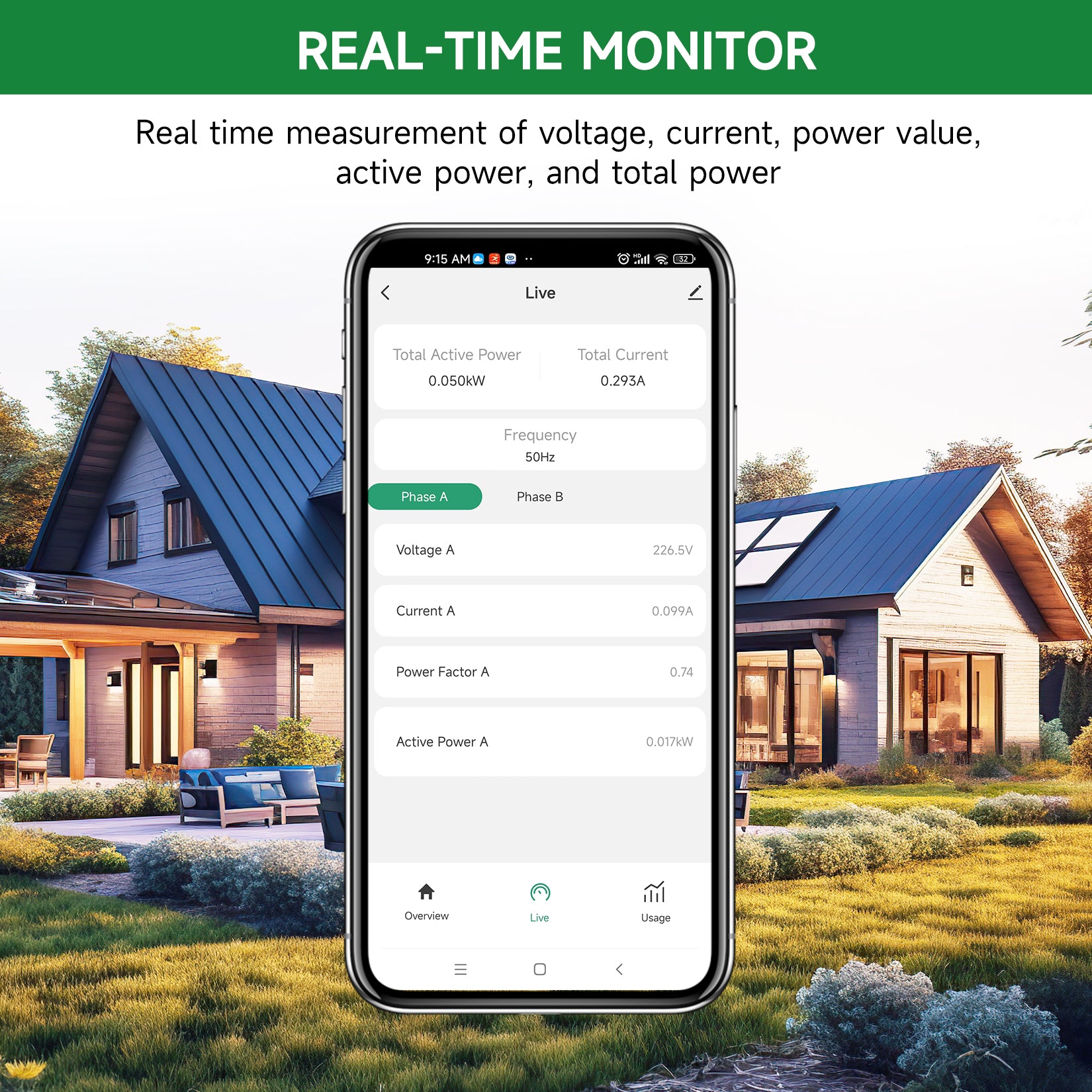

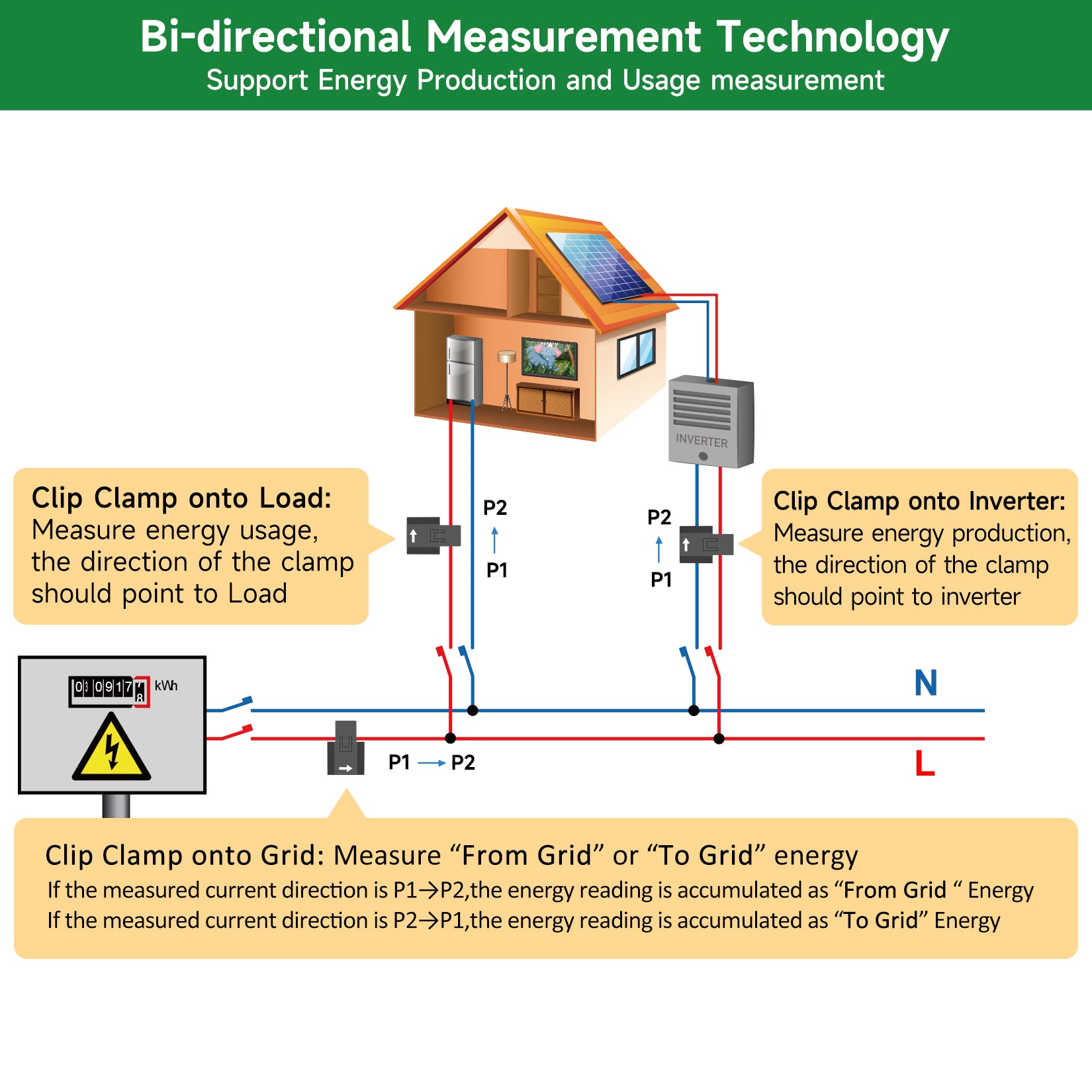

Real-Time Data: Requires 2.4 GHz Wi-Fi with internet access for app-based monitoring. The device provides data with ±2% accuracy, using two 300A current transformer (CT) clamp sensors. It supports bidirectional measurement: if the sensors are installed opposite to the current direction, the data will display as a negative value.

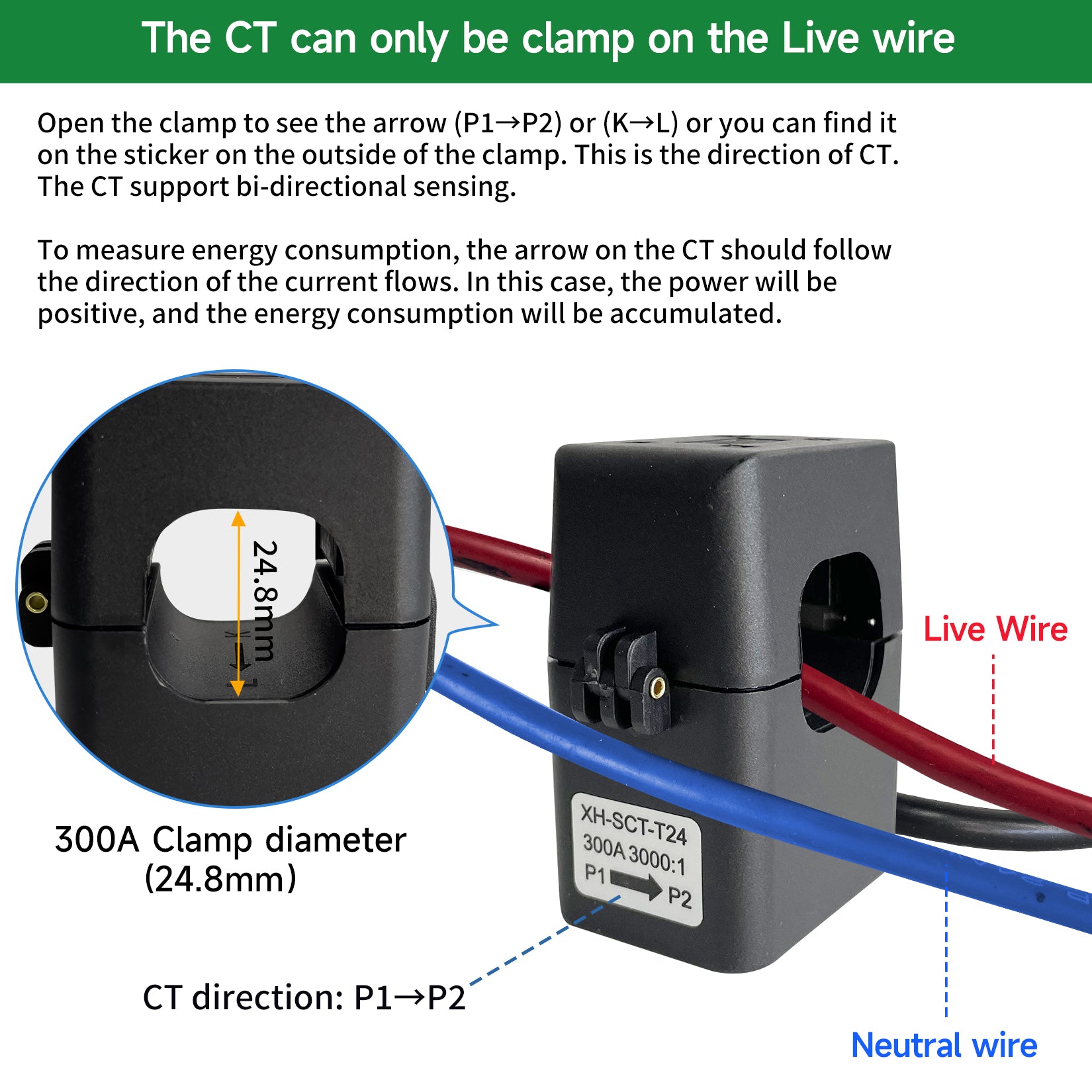

Professional Sensors: Easily installs into most home circuit panels using clamp-on sensors. Compatible with single-phase, split-phase, and 2-wire systems, as well as 2-phase, 3-wire Wye systems (neutral included, excluding Delta systems) with an optional 300A sensor.
Safety First: Installation and servicing should only be performed by qualified professionals. Ensure all power is turned off before installation, and avoid touching device terminals during testing to ensure safety.
